Technical parameters:
| External size (LxW): | 2130×1025 mm |
| Mattress platform: | 1925×900 mm |
| Safe working load: | 250 kg |
| Height adjustment: | 430-740 mm |
| Back-rest adjustment: | 0-73°(±5°) |
| Knee-rest adjustment: | 0-38°(±5°) |
| Angle indicator: | 0-90° |
| Auto-regression: | 100 mm |
| Position line: | 30° |
Technical configuration:
| Manual Crank | 3pcs |
| 5″ Covered Castors | 4pcs |
| PP side rail extra height | 1set |

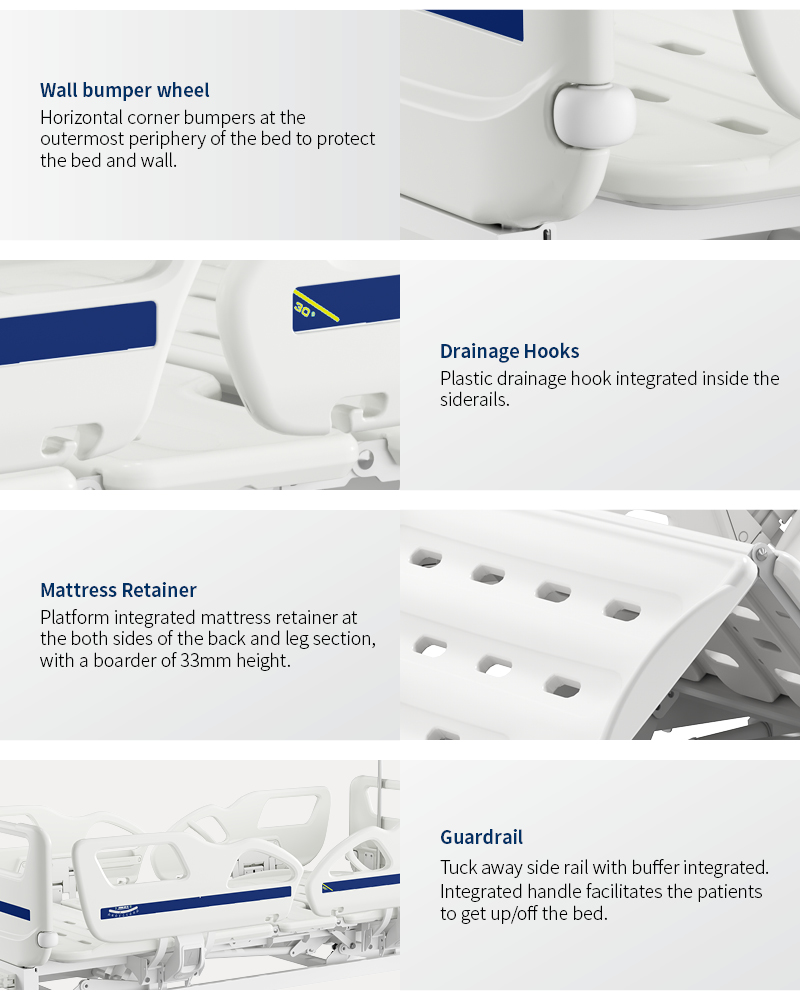

| PP bed ends with safe lock with Φ65 bumper wheels | 1set |
| PP bed platform with integrated mattress retainer | 1set |
| IV pole 4 hooks | 1set |
| IV pole prevision | 4pcs |
| Drainage hook | 2pcs |
For more information, please click the button below to download a PDF of the product.
