Technical parameters:
| External size (LxW): | 2085×1025 mm |
| Mattress platform: | 1925×900 mm |
| Safe working load: | 250 kg |
| Height adjustment: | 430-740±10 mm |
| Back-rest adjustment: | 0-75°(±10°) |
| Knee-rest adjustment: | 0-46°(±10°) |
| Angle indicator: | 0-90° |
| Position line: | 30° |
| Voltage and frequency: | 100-240V ·50/60Hz |
| Plug as required (hospital grade) |
Technical configuration:
| Linear motor | 3pcs |

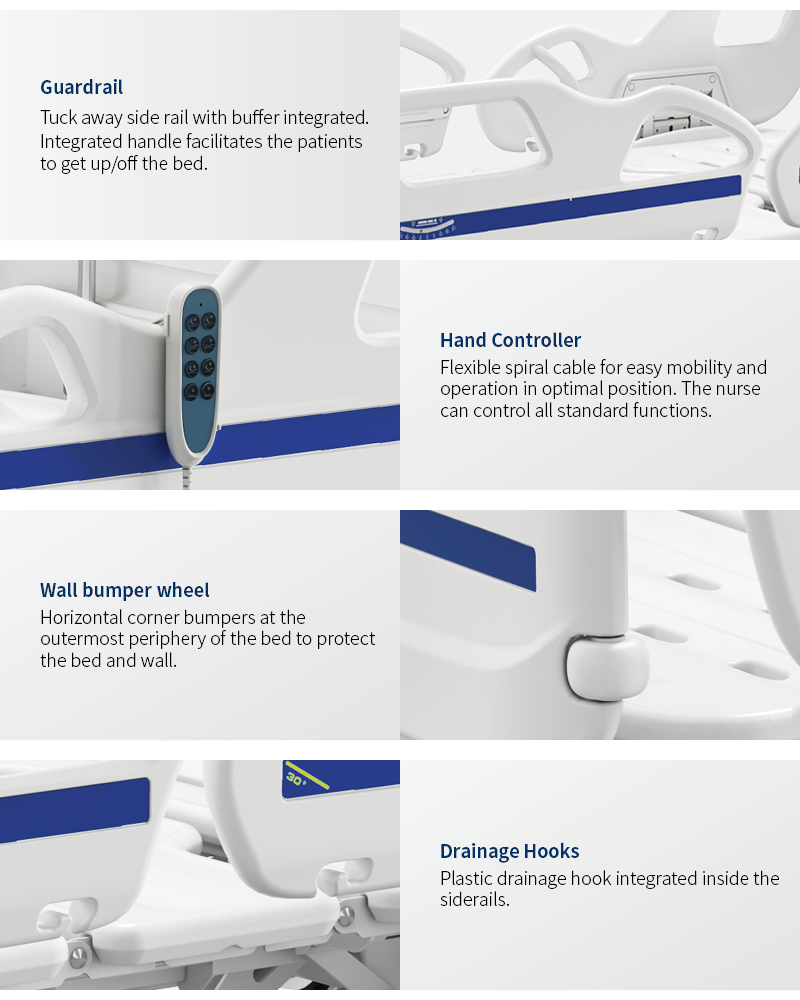

| Hand controller | 1pc |
| 5″ covered casters | 4pcs |
| PP side rail extra height | 1set |
| PP bed ends with safe lock with Φ65 bumper wheels | 1set |

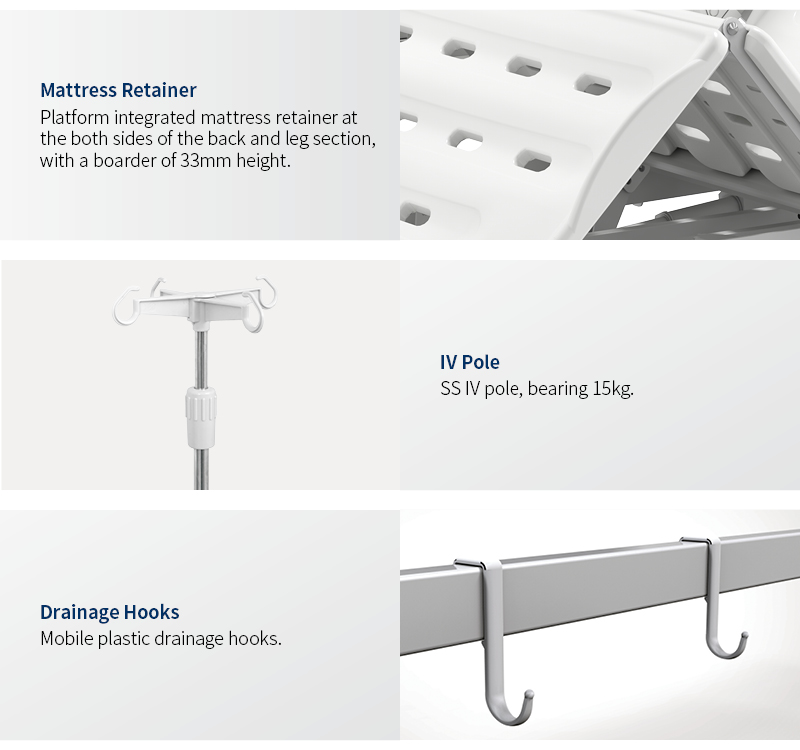

| PP bed platform with integrated mattress retainer | 1set |
| Patent angle indicator for back-rest and trendelenburg position | 4pcs |
| IV pole 4 hooks | 1set |
| IV pole prevision | 4pcs |
| Drainage hook | 2pcs |
For more information, please click the button below to download a PDF of the product.
