Technical parameters:
| External size (LxWxH) | 1975x880x465-760 mm |
| Mattress platform | 1730×780 mm |
| Safe working load | 200 kg |
| Back-rest adjustment | 0-75°(±5°) |
| Knee-rest adjustment | 0-35°(±5°) |
| Tredelenburg | 0-12° |
|
Reverse Trendelenburg |
0-12° |
Technical Configuration:
| Linear motor | 2pcs |

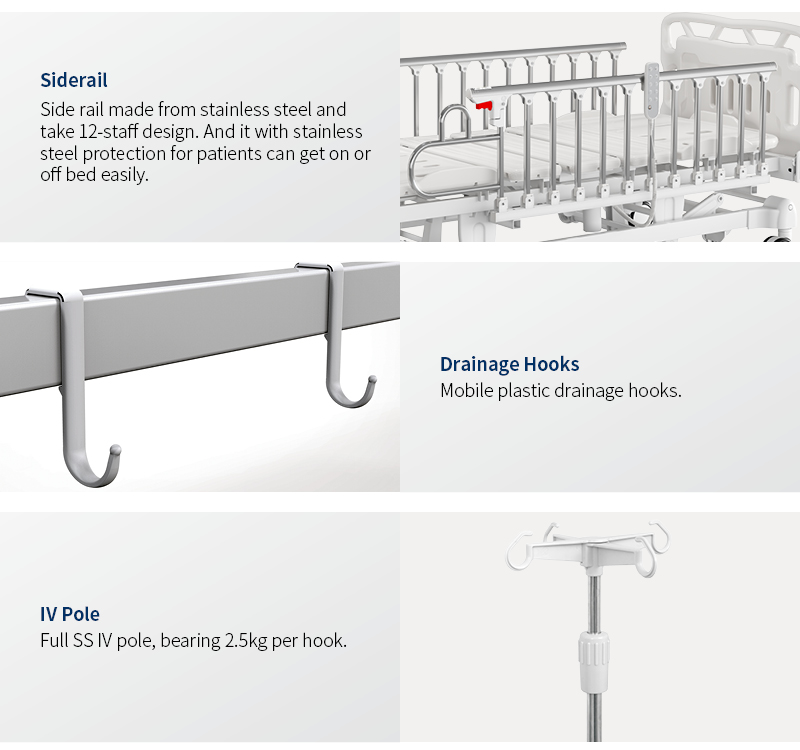

| Stainless steel side rail with extra protection | 1set |
| PP bed ends with safe lock | 1set |
| PP bed platform,removeable,washable | 5pcs |
| 5″ double side cators with central locking system | 4pcs |
| IV pole | 1set |
| IV pole prevision | 4pcs |
| Drainage hook | 2pcs |
For more information, please click the button below to download a PDF of the product.
